UniFi UDM Pro Cisco Gigabit Switch

Name: UniFi UDM Pro Cisco Gigabit Switch
Brand: UniFi
Price: 1 USD

Wholesale UniFi UDM Pro Cisco Gigabit Switch from china suppliers

Brand Name : UniFi

Model Number : UDM-Pro

Place of Origin : USA

MOQ : 1 unit

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 200 pcs per week

Delivery Time : 3-5 work days

Packaging Details : Packing box

Subtype : Gigabit Ethernet

Product name : UDM-Pro

Brand : UniFi

Switch Ports : 8 x 1 Gbps RJ45

LAN ports : 10 Gbps SFP+

IDS/IPS Throughput : 3.5 Gbps

Product : UBNT UniFi UDM-Pro

Device Type : Security Network Appliance

Contact Now

UBNT UniFi UDM-Pro 10G SFP+ Enterprise Security Network Appliance Router Switch Controller

Overview

The UniFi® Dream Machine Pro is an all-in-one network appliance for a scalable network in an office, retail, or hospitality environment. Powered by a fast 1.7 GHz quad-core processor, the UDM Pro combines multiple functions into a single device: • Advanced Security Gateway with Built-in Switch • Dual WAN Ports: One 10G SFP+ and One Gigabit RJ45 • One 10G SFP+ LAN Port • Embedded Enterprise Software: UniFi Network • 3.5" HDD Bay for NVR Storage (2.5" HDD also supported) Software The UDM Pro includes the UniFi Network Controller so you can manage your UniFi Switches and APs. It can also run the UniFi Protect software for convenient monitoring and complete management of your camera surveillance system. Video recordings are stored on the built-in NVR (hard drive not included) and can be easily accessed using the UniFi Protect mobile app. Via remote access, you can securely view the recordings that are privately stored on the UDM Pro rather than a third-party server.

Redundancy

The UDM Pro supports multiple redundancy options to ensure your network remains operational: • Dual WAN with Failover
 Supports dual internet/ISP connections with failover: if the primary WAN connection drops, it will automatically switch to the
 other WAN connection. • LTE Failover Redundancy Supports the UniFi LTE device for automatic failover to the LTE cellular network.
 If the wired WAN fails, it will automatically switch to the UniFi LTE, keeping your network online1. • Power Supply Redundancy and
 Failover The UDM Pro supports our PSU failover system, the UniFi SmartPower RPS, model USP-RPS. If the internal power supply unit
 fails, the proprietary USP RPS interface acts to provide redundant power for backup2.

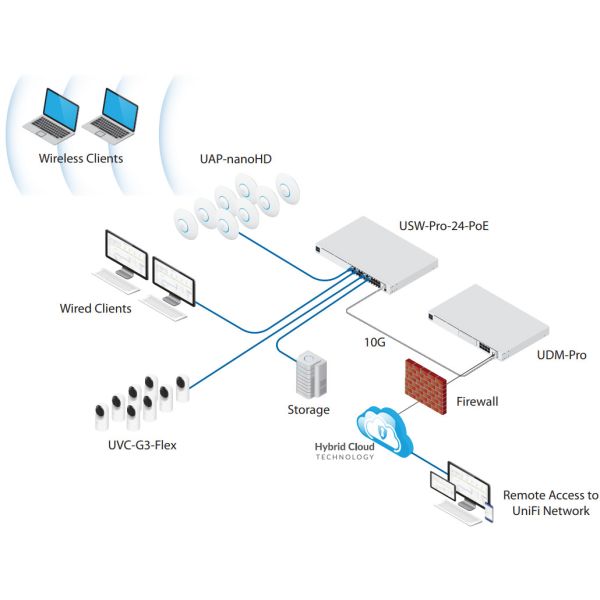

Deployment Example

UniFi Dream Machine Pro

• WAN ports • (1) 10G SFP+ port
• (1) Gigabit RJ45 port
• LAN ports
• (1) 10G SFP+ port
•  (8) Gigabit RJ45ports
• 3.5" HDD Bay (also supports 2.5" HDD)
• 1U Rackmountable (hardware included)

Additional Features

• Automatic QoS Top QoS priority is assigned to voice and video traffic. • VPN Server for Secure Communications A site-to-site VPN secures and encrypts private data communications traveling over the
internet.
• Convenient VLAN Support The UDM Pro can create virtual network segments for security and network traffic management.
• Innovative Display The 1.3" touchscreen displays status information for easy monitoring and quick troubleshooting.

Seamless Network Integration
 Use the UniFi Dream Machine Pro as your network controller.

UDM-Pro
Dimensions	442.4 x 43.7 x 285.6 mm (17.42 x 1.72 x 11.24")
Weight With Brackets	3.90 kg (8.60 lb) 3.99 kg (8.80 lb)
Interfaces Networking Management	(8) 10/100/1000 RJ45 LAN Ports (1) 10/100/1000 RJ45 WAN Port (1) 1/10G SFP+ LAN Port (1) 1/10G SFP+ WAN Port Ethernet In-Band (1) Bluetooth BLE
IDS/IPS Throughput	3.5 Gbps*

Processor	Quad ARM Cortex-A57 Core at 1.7 GHz
System Memory	4 GB DDR4
On-Board Flash Storage	16 GB eMMC
Max Power Consumption	33W
Voltage Range	100 to 240VAC
Power Method	(1) Universal AC Input,100-240VAC, 50/60 Hz (1) RPS DC Input
Power Supply	Internal 50W/12V
