24x10GE SFP+ 40GE Gigabit Ethernet Switch S6720-30C-EI-24S-AC

Name: 24x10GE SFP 40GE Gigabit Ethernet Switch S672030CEI24SAC
Brand: huawei
Price: 1 USD

Wholesale 24x10GE SFP+ 40GE Gigabit Ethernet Switch S6720-30C-EI-24S-AC from china suppliers

Brand Name : huawei

Model Number : S6720-30C-EI-24S-AC

Place of Origin : china

MOQ : 1 Unit

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 200 pcs per week

Delivery Time : 3~5 working days

Packaging Details : Original packing

Brand : huawei

Product name : S6720-30C-EI-24S-AC

Device type : 40G Switch

Product type : Huawei S6700 Switch

Ports : 24 x 10 GE SFP+

uplink ports : 2 x 40 GE QSFP+

Switching Capacity : 2.56 Tbit/s

Forwarding Performance : 720 Mpps

Contact Now

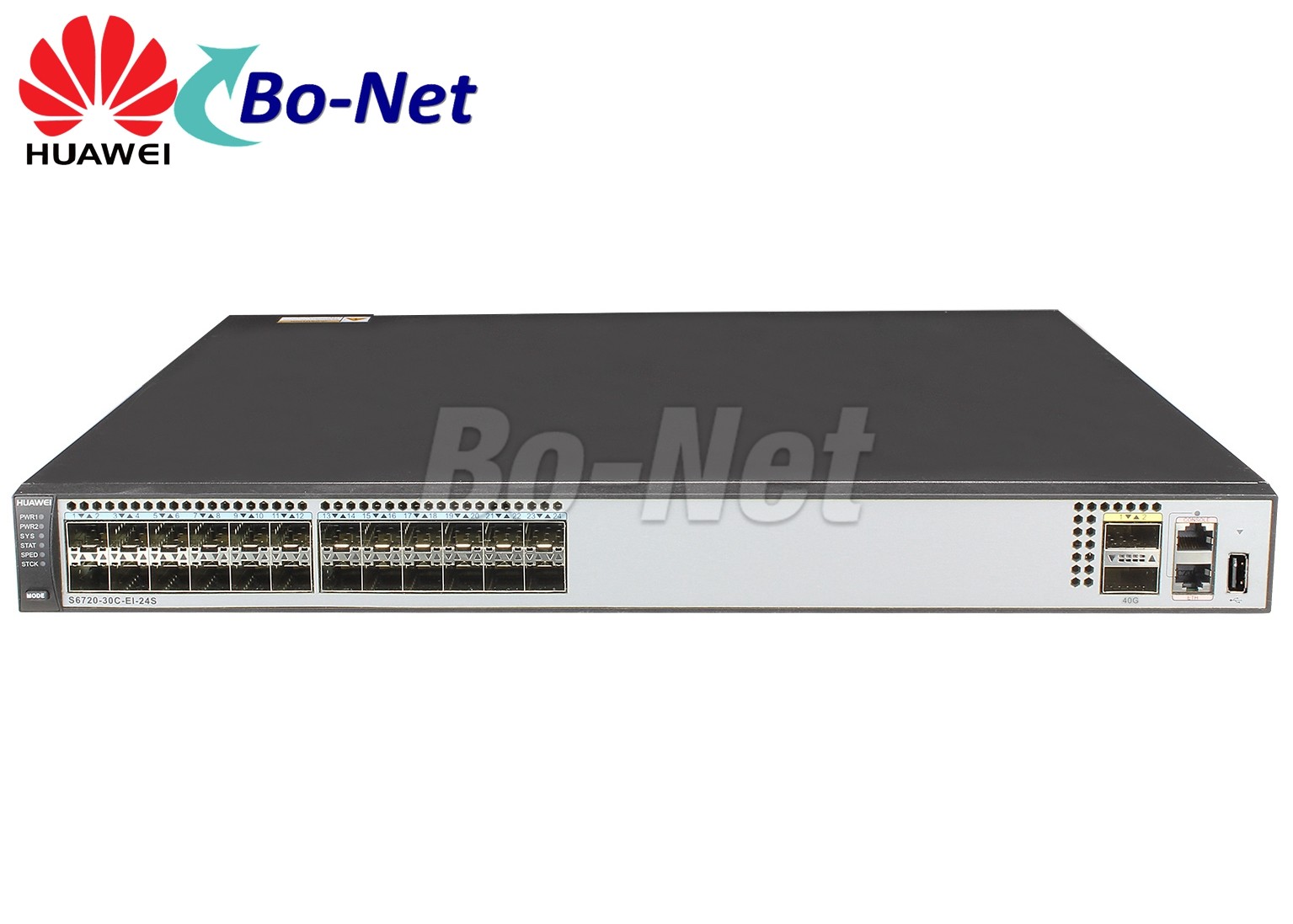

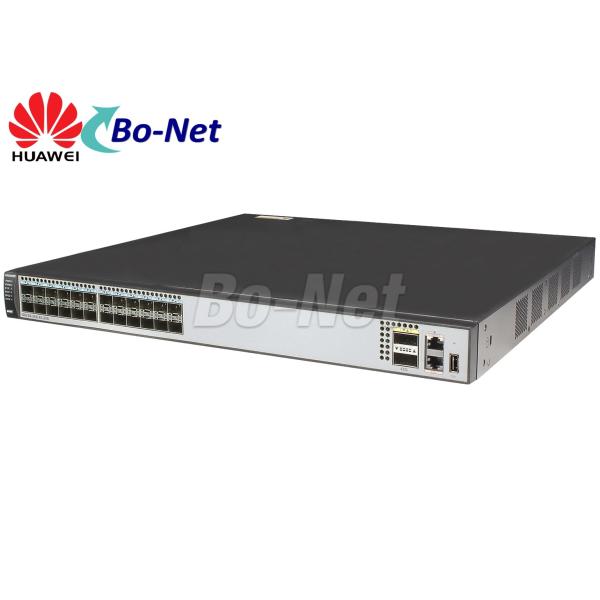

Huawei S6700 Switch S6720-30C-EI-24S-AC 24x 10GE SFP+ Switch 40GE Uplink Port

S6720-30C-EI-24S-AC

24×10GE SFP+, 2×40GE QSFP+ ports

One extended slot

Double hot swappable AC/DC power supplies

Forwarding performance: 720 Mpps

Switching capacity: 2.56 Tbps

S6720-EI Series Switches

All-10 GE Switch with Up to Six 40 GE Uplink Ports
Provides line-rate 10 GE access ports and 40 GE uplink ports. The S6720-EI series switches are high-performance all-10 GE fixed switches developed by Huawei.

iStack
Supports iStack and configuration-free stacking. The bi-directional stack bandwidth has the capacity of 480 Gbit/s.

SVF for Ultra-Simplified Network O&M
Supports Super Virtual Fabric (SVF) to virtualize the network architecture of core/aggregation switches, access switches, and APs into a single NE for simplified network O&M. The S6720-EI can work as an SVF Parent or an SVF Client.

Product model	S6720-30C-EI-24S-AC S6720-30C-EI-24S-DC	S6720-54C-EI-48S-AC S6720-54C-EI-48S-DC	S6720S-26Q-EI-24S-AC
Switching Capacity	2.56 Tbit/s	2.56 Tbit/s	2.56 Tbit/s
Forwarding Performance	720 Mpps	1,080 Mpps	480 Mpps
Fixed Ports	24 x 10 GE SFP+, 2 x 40 GE QSFP+ ports	48 x 10 GE SFP+, 2 x 40 GE QSFP+ ports	24 x 10 GE SFP+, 2 x 40 GE QSFP+ ports
Extended Slots	One extended slot	One extended slot	Not supported
MAC Address Table	288k MAC address entries MAC address learning and aging Static, dynamic, and black hole MAC address entries Packet filtering based on source MAC addresses
VLAN Features	4,094 VLANs Guest VLAN and voice VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports 1:1 and N:1 VLAN Mapping QinQ and selective QinQ
IP Routing	Static routing, RIPv1, RIPv2, ECMP, and URPF OSPF, IS-IS, and BGP VRRP Policy-based routing Routing policy
Interoperability	VLAN-Based Spanning Tree (VBST) (interoperating with PVST, PVST+, and RPVST) Link-type Negotiation Protocol (LNP) (similar to DTP) VLAN Central Management Protocol (VCMP) (similar to VTP)

24x10GE SFP+ 40GE Gigabit Ethernet Switch S6720-30C-EI-24S-AC
