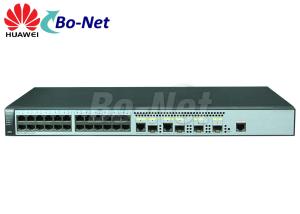

HUAWEI S5720 Switch S5720-28TP-LI-AC 24 port Gigabit Ethernet Switch

Name: HUAWEI S5720 Switch S572028TPLIAC 24 port Gigabit Ethernet Switch
Brand: huawei
Price: 1 USD

Wholesale HUAWEI S5720 Switch S5720-28TP-LI-AC 24 port Gigabit Ethernet Switch from china suppliers

Brand Name : huawei

Model Number : S5720-28TP-LI-AC

Place of Origin : USA

MOQ : 1 Unit

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 200 pcs per week

Delivery Time : 3~5 working days

Packaging Details : Original packing

Brand : huawei

Product name : S5720-28TP-LI-AC

Device type : Huawei 24 Port Switch

Ports : 24 x Ethernet 10/100/1,000 Base-T ports, 2 x Gig SFP ports, 2 of which are dual-purpose 10/100/1,000 Base-T or SFP ports

Switching Capacity : 336 Gbit/s

Product type : Huawei S5720 Switch

Forwarding Performance : 46.5 Mpps

Contact Now

Huawei S5720-56C-PWR-HI-AC S5720-HI 48 port Gigabit SFP Network Switch

S5720-LI Series Switches

The S5720-LI series are energy-saving gigabit Ethernet switches that provide flexible GE access ports and 10 GE uplink ports.

Building on high-performance hardware, store-and-forward mode, and Huawei Versatile Routing Platform (VRP), the S5720-LI series support intelligent Stack (iStack), flexible Ethernet networking, and diversified security control. They provide customers with green, easy-to-manage, easy-to-expand, and cost-effective gigabit to the desktop solutions.

S5720-28TP-LI-AC(24 Ethernet 10/100/1000 ports,2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP,AC 110/220V)

Model	S5720-28P-LI-AC S5720-28P-PWR-LI-AC S5720-28TP-LI-AC S5720-28TP-PWR-LI-AC S5720-28TP-PWR-LI-ACL	S5720-28X-LI-AC(DC) S5720-28X-PWR-LI-AC S5720-28X-LI-24S-AC(DC) S5720-28X-PWR-LI-ACF	S5720-52P-LI-AC S5720-52P-PWR-LI-AC	S5720-52X-LI-AC(DC) S5720-52X-PWR-LI-AC S5720-52X-LI-48S-AC S5720-52X-PWR-LI-ACF
Switching Capacity	336 Gbit/s	336 Gbit/s	336 Gbit/s	336 Gbit/s
Forwarding Performance	P series: 51 Mpps/108 Mpps Note: The specifications, which are to the right of the slash (/), can be achieved by loading the GE to 10G electronic RTU license. TP series: 46.5 Mpps	108 Mpps	87 Mpps/144 Mpps Note: The specifications, which are to the right of the slash (/), can be achieved by loading the GE to 10G electronic RTU license.	144 Mpps
Fixed Ports	P series: 24 x Ethernet 10/100/1,000 Base-T ports, 4 x Gig SFP ports TP series: 24 x Ethernet 10/100/1,000 Base-T ports, 2 x Gig SFP ports, 2 of which are dual-purpose 10/100/1,000 Base-T or SFP ports	S5720-28X-LI-24S-AC(DC): 24 x Gig SFP ports, 8 of which are dual-purpose 10/100/1,000 Base-T or SFP ports, 4 x 10 Gig SFP+ ports Others: 24 x Ethernet 10/100/1,000 Base-T ports, 4 x 10 Gig SFP+ ports	48 x Ethernet 10/100/1,000 Base-T ports, 4 x Gig SFP ports	S5720-52X-LI-48S-AC: 48 x Gig SFP, 2 of which are dual-purpose 10/100/1,000 Base-T or SFP, 4 x 10 Gig SFP+ Others: 48 x Ethernet 10/100/1,000 Base-T ports, 4 x 10 Gig SFP+ ports
MAC Address Table	16K MAC address entries MAC address learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses
VLAN	4,094 VLANs Guest VLAN and voice VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports VLAN mapping Super VLANBasic QinQ and selective QinQ
IP Routing	Static routing, RIP, RIPng, OSPF, and OSPFv3
Interoperability	VBST (compatible with PVST/PVST+/RPVST) LNP (similar to DTP) VCMP (similar to VTP)

S5720-28TP-LI-AC Specification
Memory (RAM)	512 MB
Flash	240 MB
Dimensions (W x D x H)	442.0 mm x 220.0 mm x 43.6 mm (17.4 in. x 8.7 in. x 1.72 in.)
Weight (including packaging materials)	2.9 kg (6.39 lb)
Stack ports	Twenty-four 10/100/1000BASE-T ports and two 1000BASE-X ports
RTC	Not supported
RPS	Not supported
PoE	Not supported
Rated voltage range	100 V AC to 240 V AC, 50/60 Hz
Maximum voltage range	90 V AC to 264 V AC, 47 Hz to 63 Hz
Maximum power consumption (100% throughput)	22.1 W
Typical power consumption (30% of traffic load) * Tested according to ATIS standard * EEE enabled * No PoE power consumption	16.2 W
