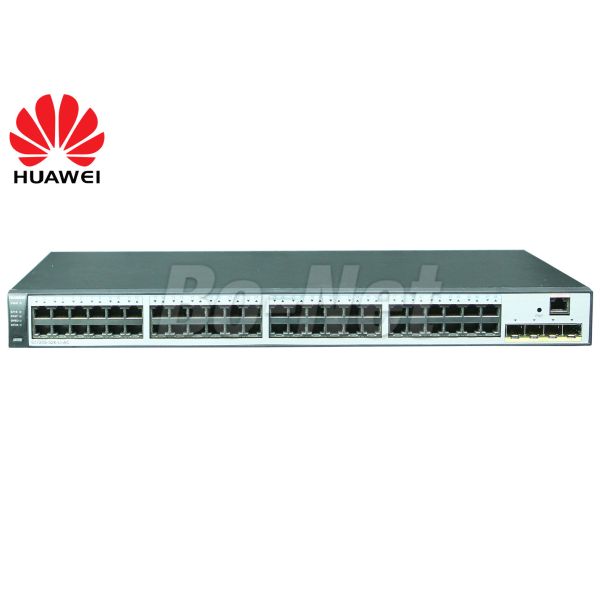

HUAWEI NETWORK SWITCH S5720S-52X-LI-AC Huawei S5720S Series 48 Port Gigabit Ethernet Switch 10G SFP+ Switch

Name: HUAWEI NETWORK SWITCH S5720S52XLIAC Huawei S5720S Series 48 Port Gigabit Ethernet Switch 10G SFP Switch
Brand: HUAWEI
Price: 100 USD

Wholesale HUAWEI NETWORK SWITCH S5720S-52X-LI-AC Huawei S5720S Series 48 Port Gigabit Ethernet Switch 10G SFP+ Switch from china suppliers

Brand Name : HUAWEI

Model Number : S5720S-52X-LI-AC

Place of Origin : CHINA

MOQ : 1 unit

Price : $100-$120

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 200 Piece/Pieces per Week

Delivery Time : 5-8 work days

Packaging Details : Neutral packing/Original packing

Brand : HUAWEI

Transmission Rate : 10/100/1000Mbps

Power : AC Power Supply

Model : S5720S-52X-LI-AC

Ports : 48 x Ethernet 10/100/1000 ports

Switch Capacity : 336Gbps

Products status : Huawei 48 Ethernet 10/100/1000 ports,4 10 Gig SFP+Switch

Device type : Huawei S5720S Series Switch

Contact Now

HUAWEI NETWORK SWITCH S5720S-52X-LI-AC Huawei S5720S Series 48 Port Gigabit Ethernet Switch 10G SFP+ Switch

5720S-52X-LI-AC(48 Ethernet 10/100/1000 ports,4 10 Gig SFP+,AC 110/220V)

Memory (RAM)	512 MB
Flash	240 MB
Service port surge protection	Common mode: ±7 kV
Power supply surge protection	±6 kV in differential mode, ±6 kV in common mode
Dimensions (W x D x H)	442.0 mm x 220.0 mm x 43.6 mm (17.4 in. x 8.7 in. x 1.72 in.)
Weight (including packaging materials)	3.4 kg (7.5 lb)
Stack ports	Forty-eight 10/100/1000BASE-T ports and four 10G SFP+ ports
RTC	Not supported
RPS	Not supported
PoE	Not supported
Rated voltage range	100 V AC to 240 V AC, 50/60 Hz
Maximum voltage range	90 V AC to 264 V AC, 47 Hz to 63 Hz
Maximum power consumption (100% throughput, full speed of fans)	50.3 W
Typical power consumption (30% of traffic load) Tested according to ATIS standard EEE enabled No PoE power consumption	31.6 W
Storage temperature	-40°C to +70°C (-40°F to +158°F)

Product Model	S5720S-12TP-LI-AC S5720S-12TP-PWR-LI-AC	S5720S-28P-LI-AC S5720S-28P-PWR-LI-AC S5720S-28TP-PWR-LI-ACL	S5720S-28X-LI-AC S5720S-28X-PWR-LI-AC	S5720S-28X-LI-24S-AC	S5720S-52P-LI-AC S5720S-52P-PWR-LI-AC	S5720S-52X-LI-AC S5720S-52X-PWR-LI-AC
Switching Capacity	336 Gbit/s
Forwarding Performance	22.5 Mpps	P series: 51 Mpps TP model: 46.5 Mpps	108 Mpps	108 Mpps	87 Mpps	144 Mpps
Fixed Ports	8 x 10/100/1,000 Base-T, 4 x Gig SFP, 2 of which are dual-purpose 10/100/1,000 Base-T or SFP	P series: 24 x 10/100/1,000 Base-T, 4 x Gig SFP TP modle: 24 x 10/100/1,000 Base-T, 4 x Gig SFP, 2 of which are dual-purpose 10/100/1,000 Base-T or SFP	24 x 10/100/1,000 Base-T, 4 x 10 Gig SFP+	24 x Gig SFP, 8 of which are dual-purpose 10/100/1,000 Base-T or SFP, 4 x 10 Gig SFP+	48 x 10/100/1,000 Base-T, 4 x Gig SFP	48 x 10/100/1,000 Base-T, 4 x 10 Gig SFP+
MAC Address Table	8k MAC address entries MAC address learning and aging Static, dynamic, and black hole MAC address entries Packet filtering based on source MAC addresses Interface-based MAC learning limiting
VLAN Features	4,094 VLANs Guest VLAN, Voice VLAN GVRP MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports 1:1 and N:1 VLAN mapping
IP Routing	Static route, RIP, RIPng
Interoperability	VLAN-based Spanning Tree (VBST) (interoperating with PVST, PVST+, and RPVST) Link-type Negotiation Protocol (LNP) (similar to DTP) VLAN Central Management Protocol (VCMP) (similar to VTP)
SVF	Plug-and-play SVF client Automatic software and patch loading to clients One-click and automatic delivery of service configurations Independent client running
