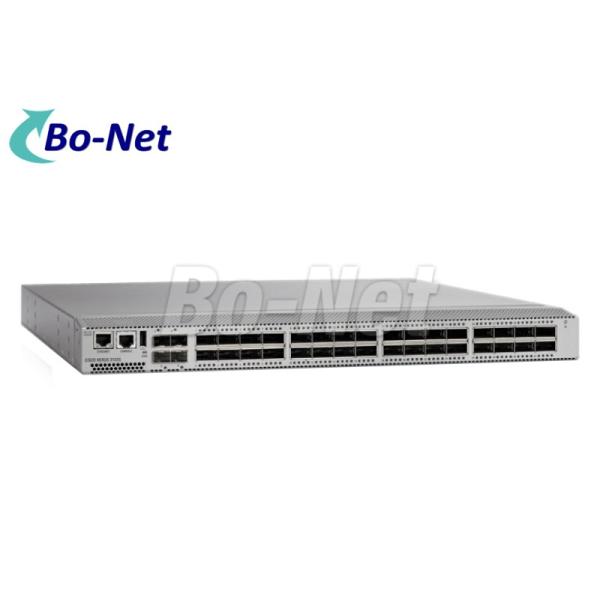

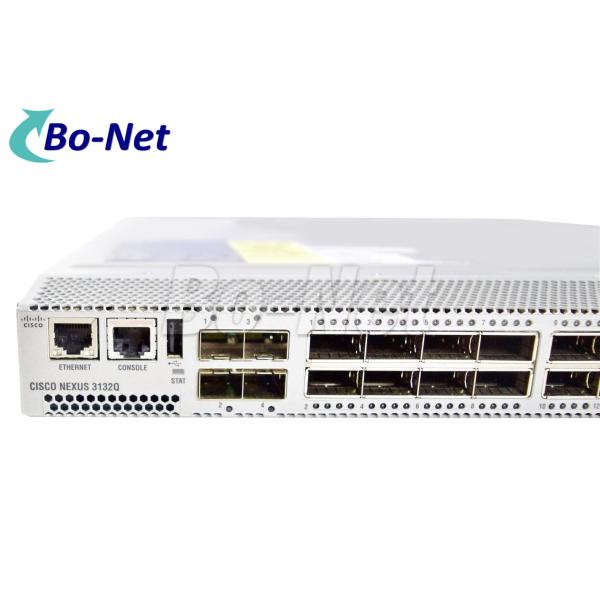

1.4 Tbps 4 SFP+ Ports Nexus 3132Q Cisco Gigabit Ethernet Switch

Name: 14 Tbps 4 SFP Ports Nexus 3132Q Cisco Gigabit Ethernet Switch
Brand: Cisco
Price: 100 USD

Wholesale 1.4 Tbps 4 SFP+ Ports Nexus 3132Q Cisco Gigabit Ethernet Switch from china suppliers

Brand Name : Cisco

Model Number : N3K-C3132Q-40GE

Place of Origin : USA

MOQ : 1 unit

Price : $100-$120

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 200 Piece/Pieces per Week

Delivery Time : 5-8 work days

Packaging Details : Neutral packing/Original packing

Brand : Cisco

Model number : N3K-C3132Q-40GE

Warranty : one year

Data Link Protocol : 40 Gigabit Ethernet

Flash : 2GB

Performance Value : 1.4 Tbps

Contact Now

Cisco Gigabit Switch Original new Nexus 3132Q 32 x QSFP+ and 4 SFP+ ports Ethernet Network Switch N3K-C3132Q-40GE

Nexus 3132Q Switch

High-Density, 40 Gigabit Ethernet, Data Center Switch
Get high-density, workload isolation, and wire-rate layer 2 and 3 switching on a data-center-class, Cis NX-OS operating system. The Cis Nexus 3132Q/3132Q-X Switch, part of the Cis Unified Fabric family, is a compact, 1-rack-unit (1RU), form factor switch for top-of-rack (ToR) data center deployments.

Features and Capabilities
Flexibility and High Performance
•Provides layer 2 and 3 switching of up to 2.5 terabits per second (Tbps) and more than 950 million packets per second (mpps)
•Phyless design on all ports to optimize latency
•32 fixed 40 Gigabit Ethernet (GE) Quad small form factor pluggable plus (QSFP+) ports
•Supports mobility and tenant isolation with VXLAN (with a software upgrade)
•Next generation 3132Q-X offers lower power consumption further lowering operational cost

Ease of Operations
The modular, resilient, Cis NX-OS operating system is purpose-built with exceptional support for layer 3 unicast and multicast routing protocols. Manageability features promote ease of use and include:
•PowerOn Auto Provisioning (POAP) for touchless bootup and configuration of the switch, drastically reducing provisioning time
•Cis Embedded Event Manager (EEM) and Python scripting
•Advanced software-defined networking (SDN) capabilities, including support for Open Flow and Cis OnePK
•Integration with Cis Prime Data Center Network Manager (DCNM) and XML management tools

Specifications at a Glance
Physical specifications:
•Dual redundant power supplies
•Redundant (3 plus 1) and hot-swappable fans
•One 10/100/1000 Mbps management port
•One RS-232 serial console port
•32 QSFP+ - each supports native 40 Gigabit Ethernet and 4 x 10 Gigabit Ethernet modes
•4 SFP+ ports that are internally multiplexed with the first QSFP+ port
•One USB port

Performance specifications:
•2.5 Tbps switching capacity
•Forwarding rate of 950 mpps
•Configurable maximum transmission units (MTUs) of up to 9216 bytes (jumbo frames)

Description	Specification
Physical	• 1RU fixed form-factor switch • 32 QSFP+ ports; each supports native 40 Gigabit Ethernet and 4 x 10 Gigabit Ethernet modes • 4 SFP+ ports • 2 redundant power supplies • 4 redundant (3+1) fans • Management, console, and USB flash-memory ports
Performance	• 2.5 Tbps switching capacity • Forwarding rate up to 1.4 bpps • Line-rate traffic throughput (both Layer 2 and 3) on all ports • Configurable maximum transmission units (MTUs) of up to 9216 bytes (jumbo frames)
Hardware tables and scalability	Number of MAC addresses	288,000
	Number of VLANS	4096
	Number of spanning-tree instances	• RSTP: 512 • MSTP: 64
	Number of access control list (ACL) entries	4000 ingress 1000 egress
	Routing table	• 16,000 prefixes and 16,000 host entries* • 8000 multicast routes *
	Number of EtherChannels	64 (with vPC)
	Number of ports per EtherChannel	16
	Buffer size	12 MB shared
	Boot flash memory	2 GB
Power	Frequency	50 to 60 Hz
	Power supply types	• AC (forward and reversed airflow) • DC (forward and reversed airflow)
	Typical operating power	• 210 watts (W) with Twinax at 100% load; 2 PSUs • 240 watts (W) with SR4 optics at 100% load; 2 PSUs)
	Maximum power	340 watts (W)
	AC PSUs • Input voltage • Frequency • Efficiency	• 100 to 240 VAC • 50 to 60 Hz • 89 to 91% at 220V
	DC PSUs • Input voltage • Maximum current • Efficiency	• -40 to -72 VDC • 33A • 85 to 88%
	Power-supply efficiency	89 to 91% at 220V
