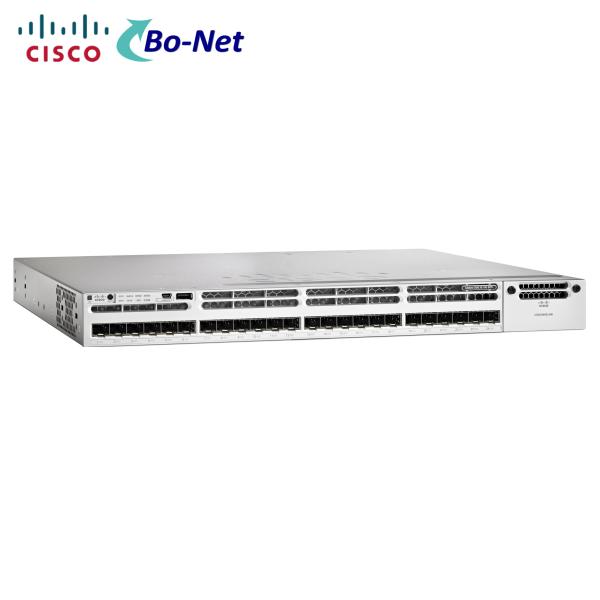

Cisco WS-C3850-24XS-S 3850 24 Port 10G Fiber Switch IP Base Switch

Name: Cisco WSC385024XSS 3850 24 Port 10G Fiber Switch IP Base Switch
Brand: Cisco
Price: 1 USD

Brand Name : Cisco

Model Number : WS-C3850-24XS-S

Place of Origin : USA

MOQ : 1 unit

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram,PayPal,Alipay

Supply Ability : 100pcs per week

Delivery Time : 1-2 work days

Packaging Details : Original Cisco Packing

Brand : Cisco

Model : WS-C3850-24XS-S

Series : Switch

Subtype : 24 x SFP+ ports

Ports : 48

Enclosure Type : Rack-mountable 1U

Stack Bandwidth : 480Gbps

RAM : 4G

Contact Now

Cisco WS-C3850-24XS-S 3850 24 Port 10G Fiber Switch IP Base Switch

The Cisco Catalyst 3850 Series provides capabilities that ideally suited to support the convergence of wired and wireless access. The new Cisco Unified Access Data™ Plane (UADP) Application-Specific Integrated Circuit (ASIC) powers the switch and enables uniform wired-wireless policy enforcement, application visibility, flexibility, and application optimization.

WS-C3850-24XS-S

Stackable 24 SFP+ Ethernet ports, with 715WAC power supply

1 RU, IP Base feature set

model info:	WS-C3850-24XS-S
enclosure type	Rack-mountable - 1U
Ports	24 x SFP+ ports
Network management Interface	Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling Management console port: RJ-45-to-DB9 cable for PC connections
Available PoE Power	None
Switching Capacity	320Gbps
Maximum stacking number	up to 9 switches with same IOS feature set in same series
Stack Bandwidth	480Gbps
Forwarding Performance	454.55Mpps
FNF entries	48,000 flows
Maximum VLANs IDs	1,000
MAC Address Table Size	32K
CPU	Multicore CPU
RAM	4 G
Flash Memory	4 G
Wireless
Number of AP per switch/stack	100
Number of wireless clients per switch/stack	2000
Total number of WLANs per switch	64
Wireless bandwidth per switch	up to 20Gbps
Supported Aironet AP series	3600, 3500, 2600, 1600, 1260, 1140, 1040
Expansion / Connectivity
Console ports	USB (Type-B), Ethernet (RJ-45)
Expansion Slot(s)	1 network module slot and 1 power redundant slot
Network Modules Selection	C3850-NM-4-1G: 4 x 1G uplinks network module C3850-NM-2-10G: 2 x 10G or 4 x 1G uplinks network module
Stacking cable	STACK-T1-50CM StackWise stacking cable with a 0.5 m length STACK-T1-1M StackWise stacking cable with a 1.0 m length STACK-T1-3M StackWise stacking cable with a 3.0 m length
Stack Power Cable (recommended)	CAB-SPWR-30CM stack power cable with a 30CM length CAB-SPWR-150CM stack power cable with a 150CM length
Power supply	PWR-C1-715WAC
Power Device	Power supply - redundant - plug-in module
Power Redundancy	optional
Voltage range (Auto)	100V-240V
Power Consumption of standalone(in Watts)	205.5 (Max)
